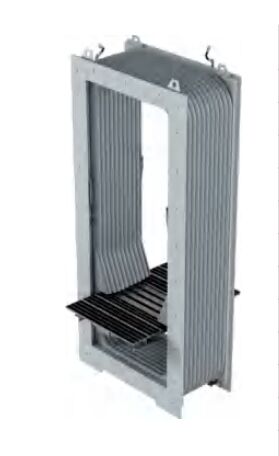

Gangway for High-Speed Train (Standard 250 / 350)

Gangway for High-Speed Train (Standard 250 / 350)

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Lebar:

Kurang lebih 2,8-3,5 meter

Berat:

Bervariasi, biasanya 30-200 ton

Tinggi:

Kurang lebih 3,5-4,5 meter

Fitur Keamanan:

Ketahanan terhadap benturan, Tahan api, Rem darurat

Sistem Pengendalian:

Manual, semi-otomatis, otomatis penuh

mobil roda dua:

K2,K6,K5,K1,K3,K4, DLL

Tipe Penggandeng:

No.2 Coupler

Standar kepatuhan:

UIC, AAR, EN, ISO

Kapasitas:

Bervariasi berdasarkan model, biasanya 50-1000 penumpang atau ton barang

Sistem Pengereman:

Rem udara, Rem dinamis, Rem elektromagnetik

sistem kopling:

Otomatis, Semi Otomatis, Manual

Panjang gerobak:

8336mm

Berat tara:

25.0t

Tipe Bogie:

Bogie yang dilas

Kecepatan:

kurang dari 120 km/jam

Menyoroti:

high-speed train gangway

standard 250 gangway for trains

350 series railway vehicle gangway

Deskripsi Produk

Product Overview

The High-Speed Train Gangway is specifically designed for standard high-speed rail vehicles operating at 250 km/h and 350 km/h. It features an integrated olive-shaped folding bellow structure combined with inlaid treading and transition plates, ensuring excellent airtightness, ride comfort, and operational safety under high-speed conditions.

Technical Specifications

Item	Description
Train Type	Standard high-speed train (250 km/h, 350 km/h)
Structure	Integrated olive-shaped folding bellow + inlaid treading and transition plate

Performance Data

Parameter	Specification
Curve Passing Capacity	R180 m and S curve
Pass Size	850 mm
Vehicle End Distance	650 mm
Fire Resistance	EN45545 / BS6853 / DIN5510 (optional)
Sound Insulation Value	≥ 38 dB
Thermal Insulation Value	K ≤ 3.0 W/(m²·K)
Waterproof Performance	No leakage, according to IEC 61133
Airtight Performance	Pressure difference from 4000 Pa to 1000 Pa, lasting 100 seconds
Support Mode	Self-support
Maximum Operating Speed	350 km/h

Application Projects

This high-speed train gangway has been successfully applied in:

CR300 High-Speed Train
CR400 High-Speed Train
CRH350 High-Speed Train
